Portable Oil Filter Carts & Dedicated Oil Filtration Systems

We have a range of portable oil filter carts that can move easily around your plant continuously filtering your oil - without interrupting normal operations. We also have dedicated bypass filtration systems that are designed for individual oil reservoir applications. Both use multi-pass filtration to remove water and contaminants from the oil, reducing maintenance time and extending the life of the oil. Each element can remove up to a gallon of water!

Both systems can clean and filter all oils including:

• Hydraulic Oil
• Cutting Oil
• Lubricating Oil
• Transformer Oil
• Engine Oil
• Stamping Oil

Features include (varies depending on model):

• Depth Filter Housings W/ Element Lifters
• Bag Filter Housing (on certain systems)
• Positive Displacement Gear Pump (Fluid flow determined by fluid viscosity)
• 115V 1 Ph 60 Hz 1725 RPM TEFC Motor
• Plumbed with Flow Control Loop & Transfer Feature
• Motor Starter w/Thermal Overload Protection
• High/Low Pressure Switch for Unattended Operation
• External Pressure Relief Valve
• 0-100 Pressure Gauge to Monitor Element Loading
• Cast Iron Inlet Wye Strainer
• Vacuum and Pressure gauges
• Power Indicator and Run Indicator
• Frame with 10” Oil Resistant Wheels (on portable carts)
• Free-standing frame (on dedicated systems)
• 10’ Inlet/Outlet Hoses
• Optional heaters for viscous oils

Portable Filter Carts

Product	Oil Filter Systems	Depth Filter Housings	Gear Pump, gpm	Bag Filter Housings
	Model 100	(1) C-1000	3.5 & 5	No

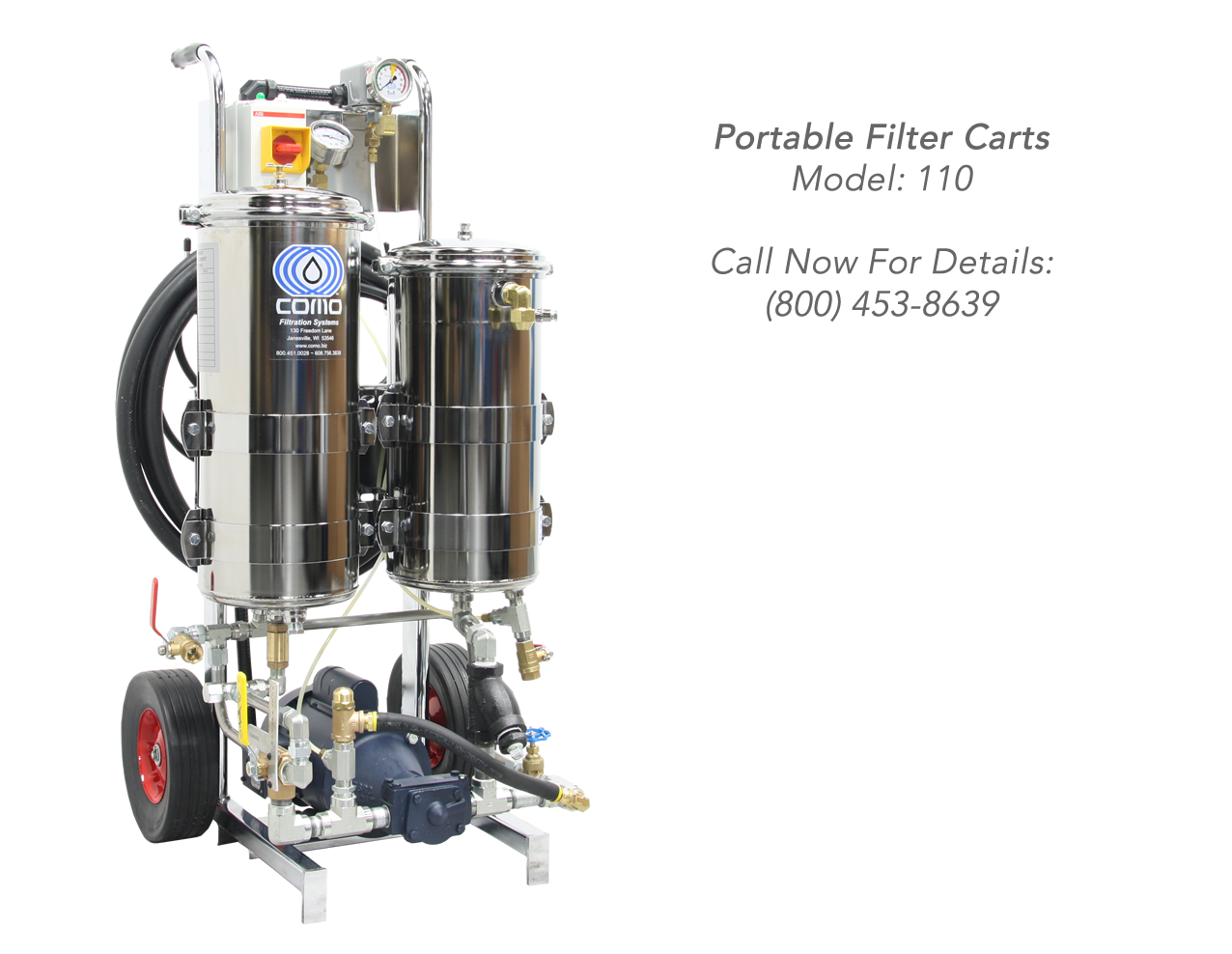

	Model 110	(1) C-1000	3.5 & 5	CB-400

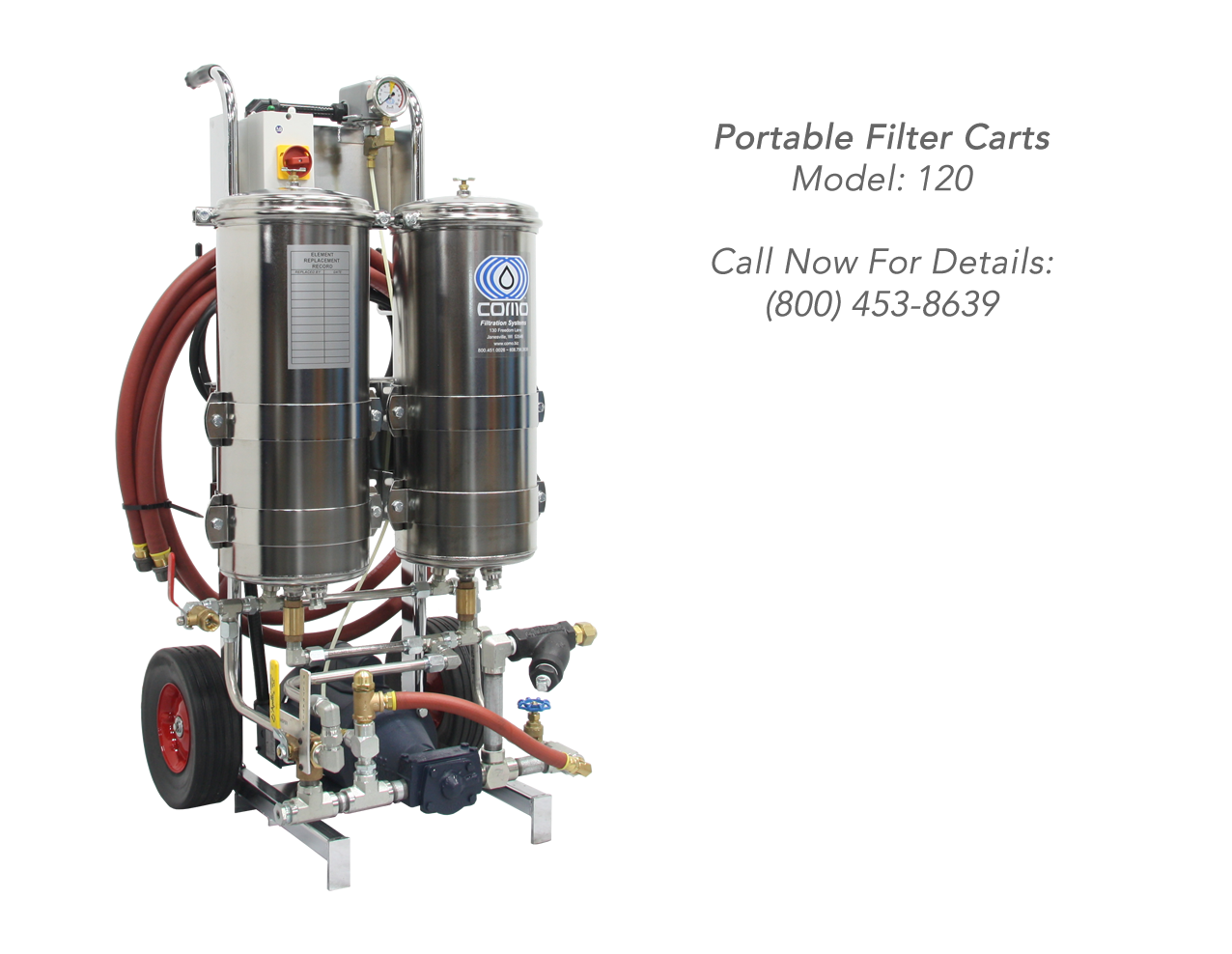

	Model 120	(2) C-1000	5, 8 & 11	No

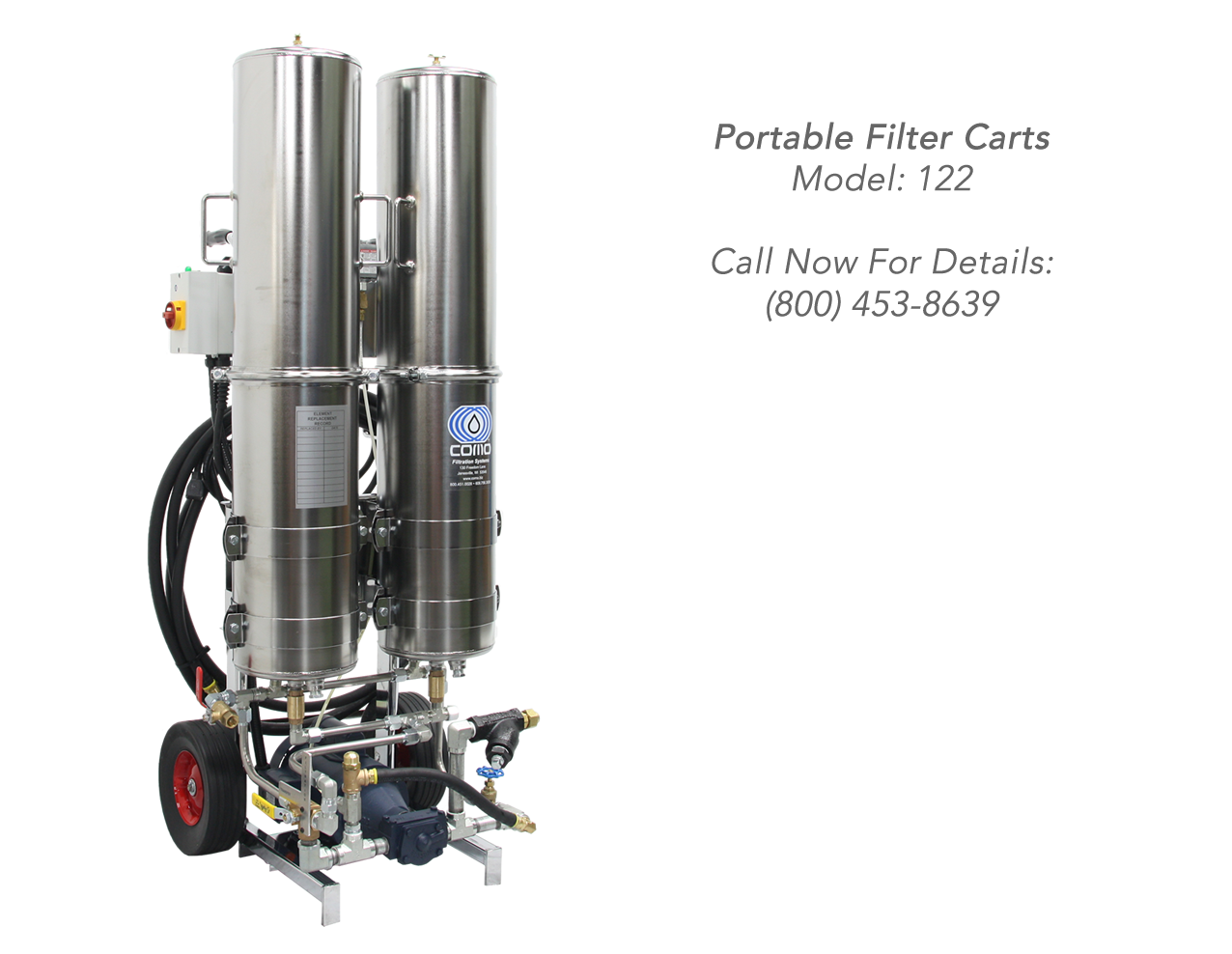

	Model 122	(2) C-1002	8 & 11	No

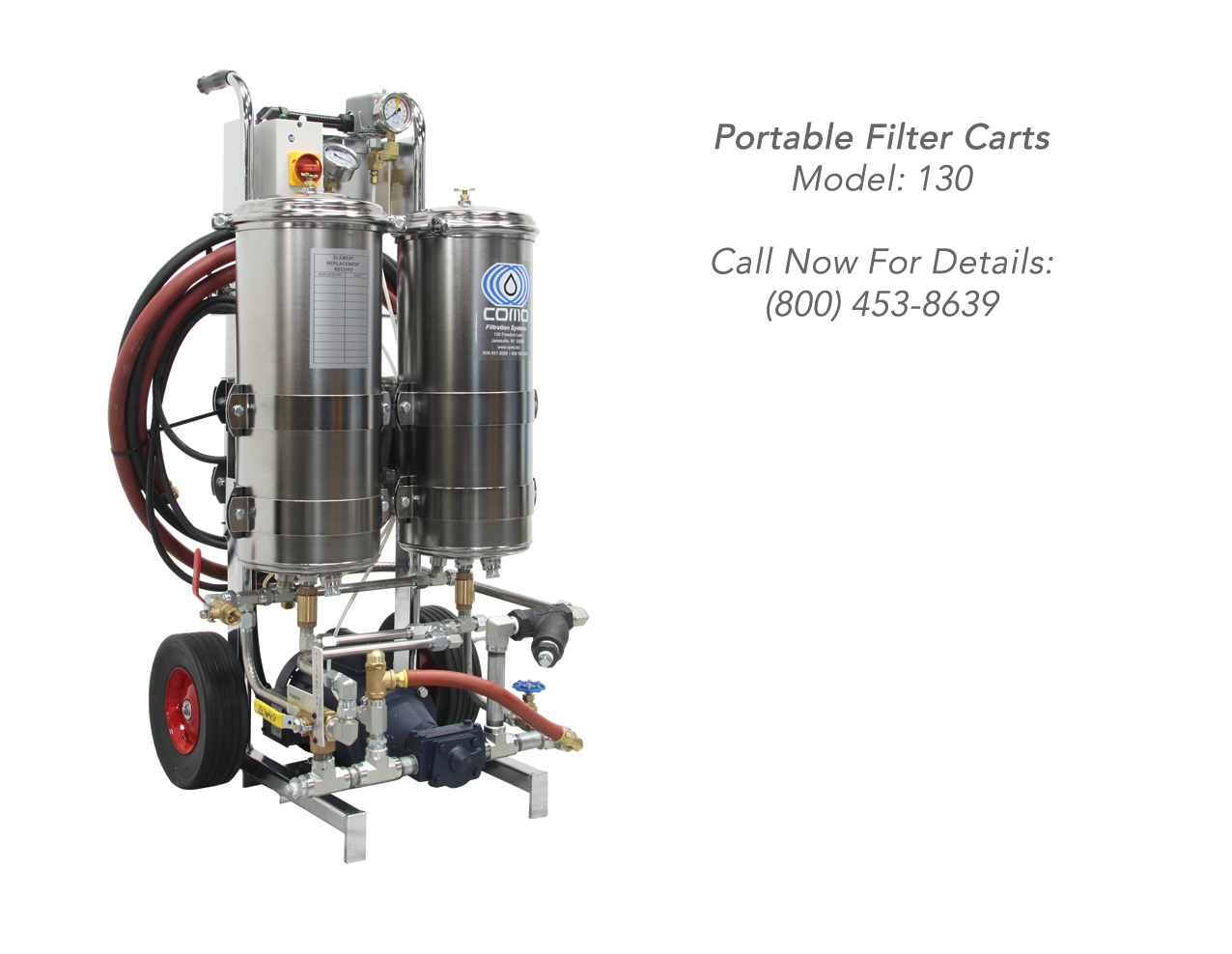

	Model 130	(2) C-1000	5, 8 & 11	CB-400
Dedicated Filter Systems

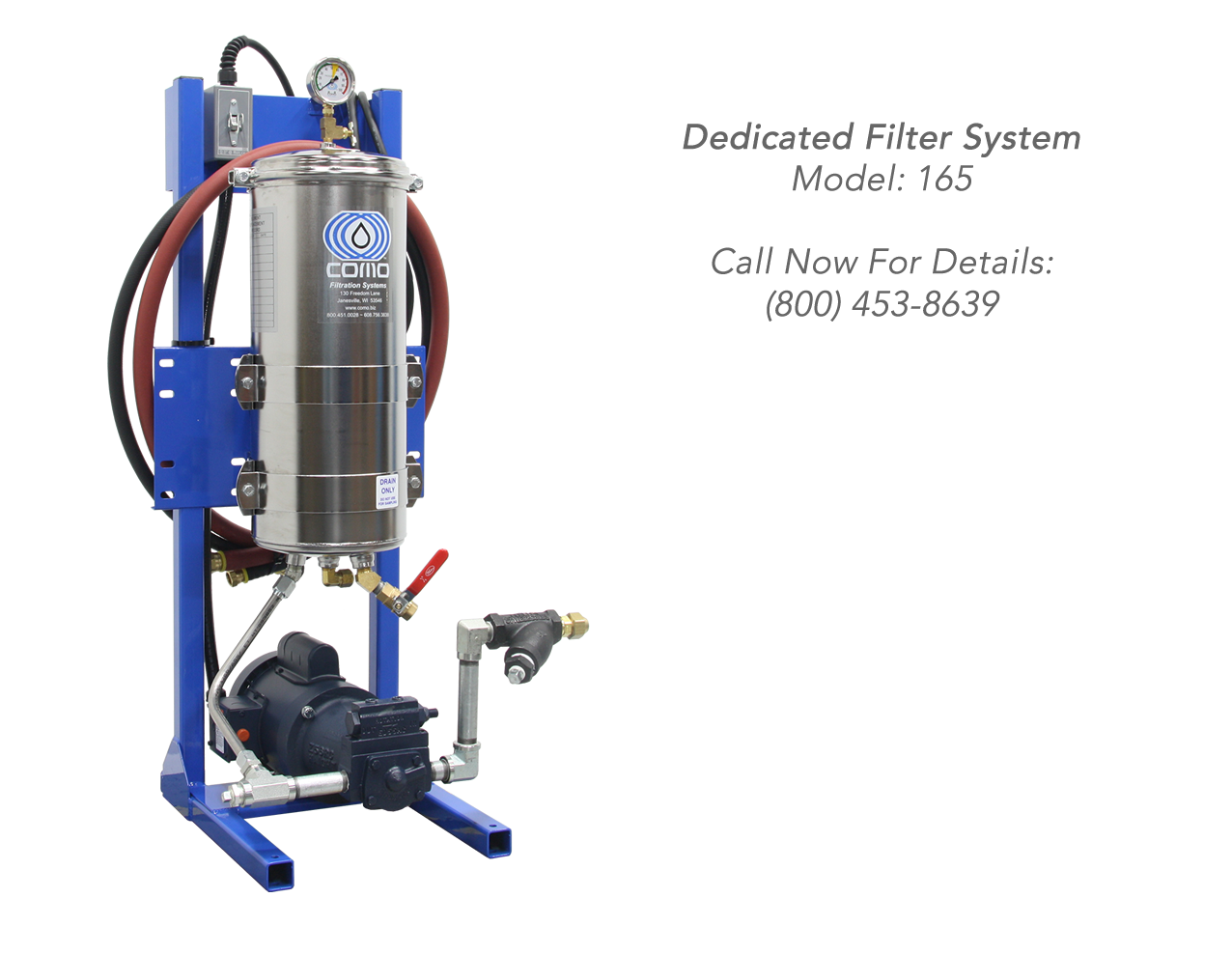

	Model 165	(1) C-1000	3.5 & 5	No

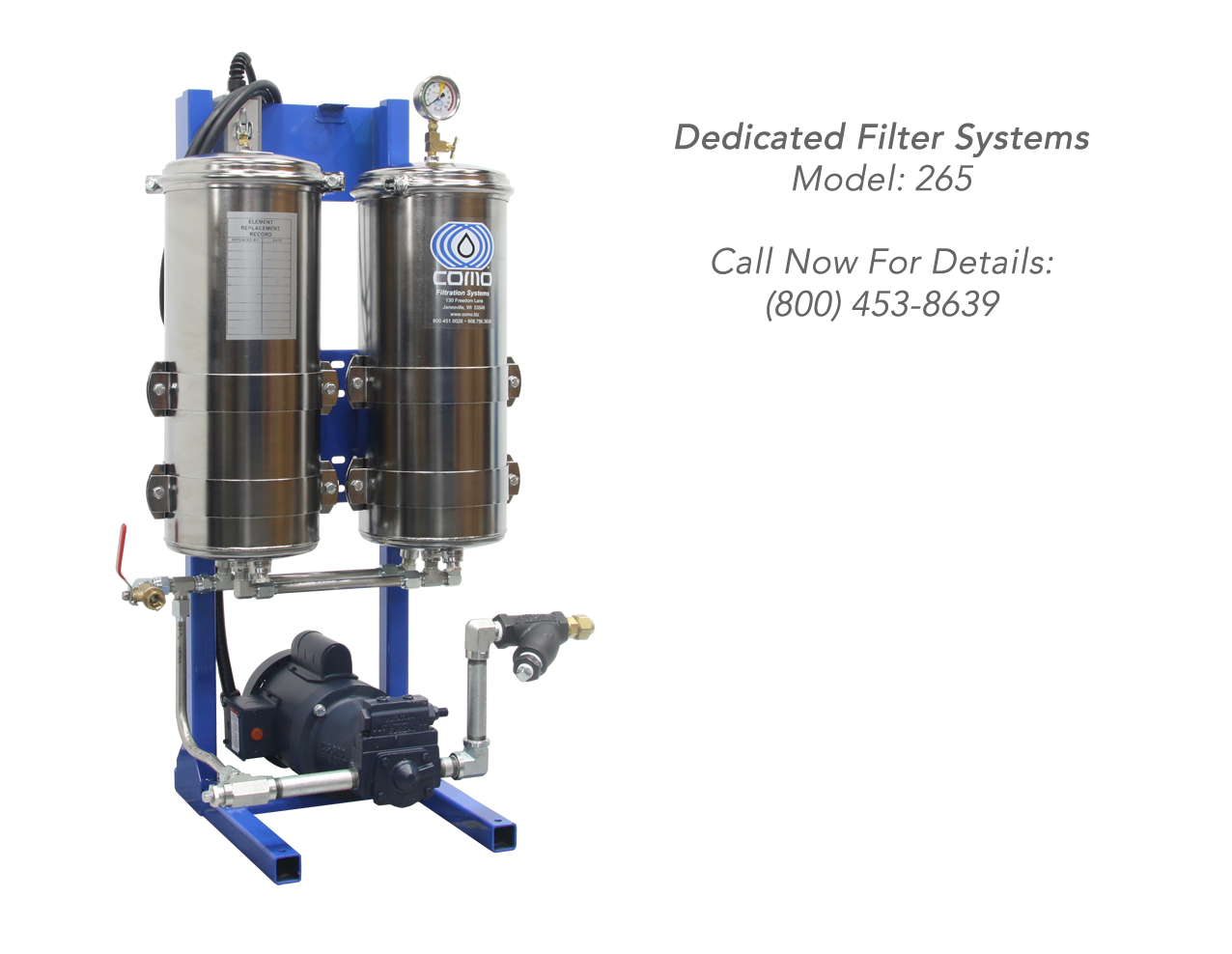

	Model 265	(2) C-1000	5, 8 & 11	No
